Tubular Pole Manufacturing in Pakistan – Complete Technical Overview
Complete Technical Guide – By M. Siddique Sons Engineering Concerns (Pvt.) Ltd.
Tubular Poles are among the most widely used steel poles in Pakistan for street lighting, road safety, CCTV installations, solar lighting, and commercial infrastructure projects. Their smooth appearance, stable design, and cost-effective manufacturing make them an ideal choice for long-term outdoor applications.
At M. Siddique Sons Engineering Concerns (Pvt.) Ltd., we specialize in the manufacturing of single-arm and double-arm tubular poles, fabricated from premium-grade steel and fully protected through ASTM-standard Hot Dip Galvanizing. Our poles are engineered for durability, strength, and weather resistance.
What Is a Tubular Pole?
A Tubular Pole is a cylindrical steel pole produced by bending a steel sheet into a round or tapered shape and then welding it along the length. These poles are known for:
✔ High structural stability
✔ Modern round appearance
✔ Excellent wind-load performance
✔ Long lifespan after galvanizing
Tubular poles are widely used in roads, highways, plazas, housing societies, public lighting, and security surveillance systems.
🔧 Tubular Pole Manufacturing Process
1. High-Grade Steel Material Selection
We use certified S235 / S275 / S355 steel plates suited for heavy-duty applications.
2. Precision Cutting
Steel sheets are cut using CNC cutters for accurate dimensions.
3. Rolling into Tubular Shape
Sheets are rolled using hydraulic machines into a round or tapered round pole shape.
4. Longitudinal Welding
A continuous welding seam ensures strength and structural consistency.
5. Base Plate Fabrication
Heavy-duty base plates are welded according to required thickness and bolt patterns.
6. Arm/Bracket Construction
Single-arm, double-arm, CCTV, or custom brackets are manufactured as needed.
7. Hot Dip Galvanizing (450°C Zinc Bath)
We follow ASTM A123 standards to provide 20–25 years of corrosion protection.
8. Final Inspection & Finishing
Poles undergo coating thickness measurement, welding checks, and straightening inspection.
Types of Tubular Poles We Manufacture
✔ Single-Arm Tubular Poles
Best for streets, parks, and housing societies.
✔ Double-Arm Tubular Poles
Designed for wider roads and intersections.
✔ CCTV Tubular Poles
Ideal for security surveillance and smart city installations.
✔ Solar Tubular Poles
Includes solar panel mounting brackets.
✔ Customized Poles
Height, bracket type, thickness, and base plates can be fully customized.
Types of Tubular Poles We Manufacture
✔ Single-Arm Tubular Poles
Best for streets, parks, and housing societies.
✔ Double-Arm Tubular Poles
Designed for wider roads and intersections.
✔ CCTV Tubular Poles
Ideal for security surveillance and smart city installations.
✔ Solar Tubular Poles
Includes solar panel mounting brackets.
✔ Customized Poles
Height, bracket type, thickness, and base plates can be fully customized.
Advantages of Tubular Poles
✔ High Wind Stability
Round shape reduces wind pressure effectively.
✔ Long-Lasting Rust Protection
Hot Dip Galvanizing ensures 20+ years of corrosion resistance.
✔ Low Maintenance
Requires minimal upkeep throughout its lifespan.
✔ Cost-Effective Manufacturing
Economical production without compromising durability.
✔ Elegant & Modern Design
Matches modern infrastructure standards.

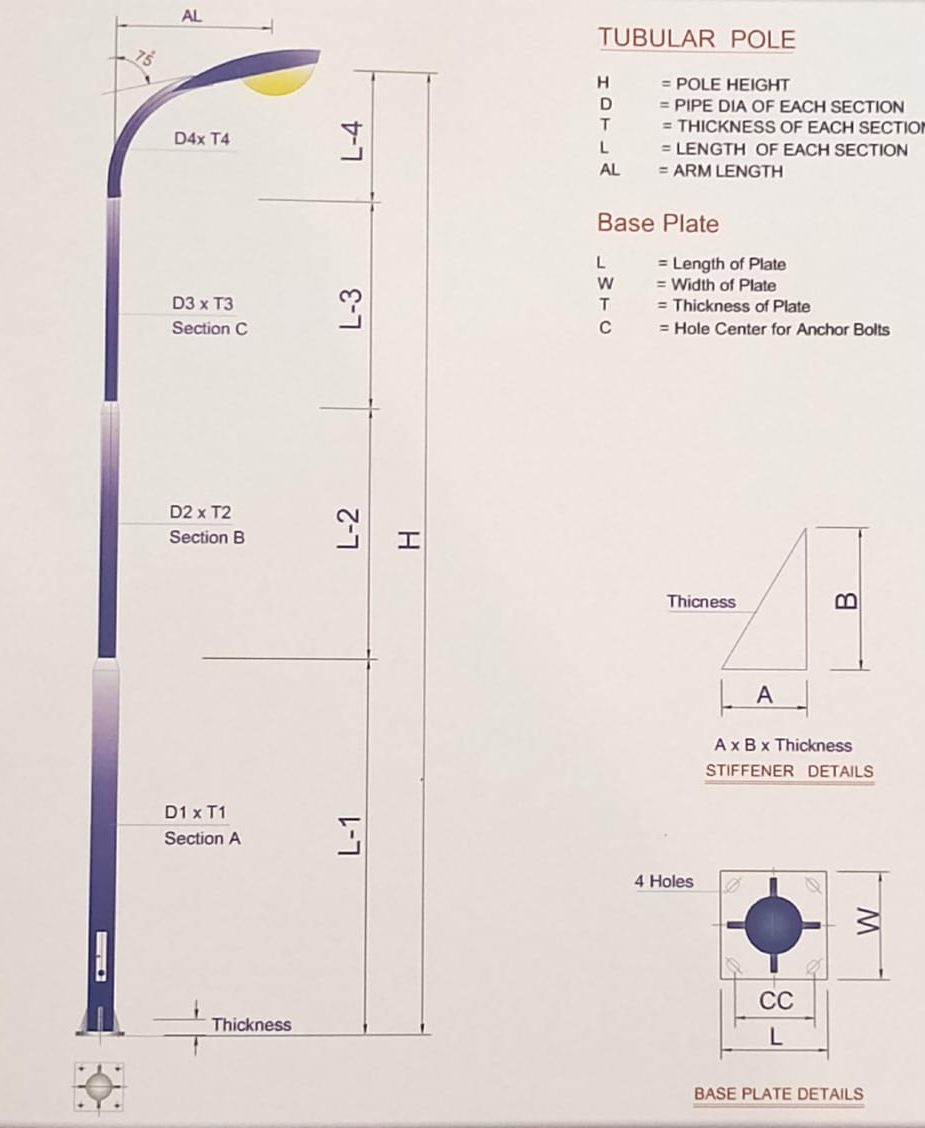

🔩 Technical Specifications (Standard)
Specification | Details |
|---|
| Height | 3 Meter– Up-to 50 Meter |
| Shape | Round / Tapered Round |
| Material | Mild Steel (SS 400, ASTM A36) |
| Welding | Longitudinal seam welding |
| Bracket | Single / Double / CCTV / Solar |
| Galvanization | ASTM A123 (Hot Dip) |
| Base Plate | Custom thickness & dimensions |
🏢 Why Choose M. Siddique Sons Engineering Concerns (Pvt.) Ltd.?
✔ Advanced steel fabrication machinery
✔ Experienced engineering & fabrication team
✔ ASTM-standard Hot Dip Galvanizing setup
✔ Custom manufacturing for all pole types
✔ Quality assurance & strict inspection
✔ Fast production & nationwide delivery
We supply tubular poles for government departments, housing societies, contractors, private developers, municipal authorities, and industrial clients across Pakistan.
